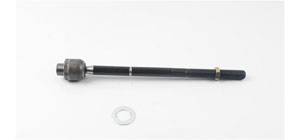

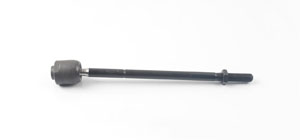

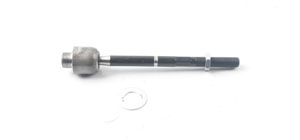

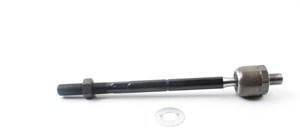

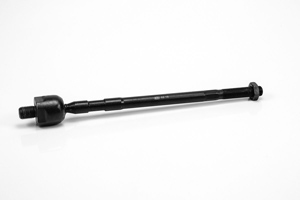

This mechanically connects the Rack bar and the Tierod-end. The steering power input from the steering is transmitted to the tire so that the driver can move the vehicle in the desired direction.
The tie rod set (Tiderod-end & Rack-end) has a ball joint structure on both sides. Even when the body is inclined, it responds flexibly and transmits steering power to the wheel.
★Strong Surface Treatment
Jaisheng has electro deposition coating comparable to the OE level to prevent rust from reducing durability.
★Plastic Seat
Jaisheng uses a plastic ball seat. Low friction damage and low variation in torque and clearance can keep performance long.
★Hard & Soft Ball Stud
Jaisheng reduces the surface roughness of the ball through the burnishing process, making the ball smooth.
★Special Grease
Coat the ball and ball seat with specially made grease to keep the torque stable and prevent rust.
| PRODUCT IMAGE | PARTS NO | CAR NAME | MODEL | YEAR | POSITION | DESCRIPTION |
|---|---|---|---|---|---|---|
 |
1306016 | DODGE | ASPEN, DURANGO | 07-09 | RACK END | |
 |
1306013 | DODGE | ASPEN,DURANGO | 07-09 | FRONT R/L | RACK END |
 |
1306010 | DODGE | H-100 | 03-08 | FRONT R/L | RACK END |
 |
1306005 | DODGE | DAKOTA,DURANGO, | 00-04 | R/L | RACK END |
 |
1306004 | DODGE | RAM,1500,4X2,Y,4 | 03-05 | FRONT R/L | RACK END |
 |
1306001 | DODGE | H-100 | 03-08 | FRONT R/L | RACK END |
 |
SE141162449A | FIAT | C25 JUMPER | 94- 94 | RACK END | |
| |
SE127162449A | FIAT | C25 JUMPER | 94- 94 | RACK END | |
 |
MS10749 | FIAT | 500 | 07-11 | R/L | RACK END |
 |
JAR108 | FIAT | Punto | 94-99 | RACK END | |
 |
9983325 | FIAT | DAILY | 78-99 | RACK END | |
 |
9949217 | FIAT | STILO | 01- | RACK END |
