This mechanically connects the Rack bar and the Tierod-end. The steering power input from the steering is transmitted to the tire so that the driver can move the vehicle in the desired direction.
The tie rod set (Tiderod-end & Rack-end) has a ball joint structure on both sides. Even when the body is inclined, it responds flexibly and transmits steering power to the wheel.
★Strong Surface Treatment
Jaisheng has electro deposition coating comparable to the OE level to prevent rust from reducing durability.
★Plastic Seat
Jaisheng uses a plastic ball seat. Low friction damage and low variation in torque and clearance can keep performance long.
★Hard & Soft Ball Stud
Jaisheng reduces the surface roughness of the ball through the burnishing process, making the ball smooth.
★Special Grease
Coat the ball and ball seat with specially made grease to keep the torque stable and prevent rust.

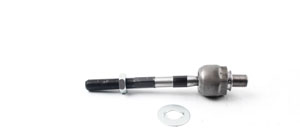

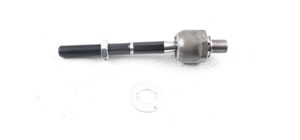

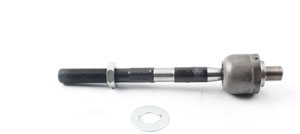

| PRODUCT IMAGE | PARTS NO | CAR NAME | MODEL | YEAR | POSITION | DESCRIPTION |
|---|---|---|---|---|---|---|
 |
577244D000 | KIA | SEDONA | 2014 | Inner | RACK END |
 |
577243F500 | KIA | AMANTI | 2006 | Inner | RACK END |
 |
577243C010 | KIA | MAGENTIS | 2006 | Inner | RACK END |
| |
5772438010 | KIA | MAGENTIS | 2006 | Inner | RACK END |
| |
5772438000 | KIA | MAGENTIS | 2006 | Inner | RACK END |
 |
577242W000 | KIA | CADENZA | 2015 | Inner | RACK END |
| |
577242T500 | KIA | CADENZA | 2015 | Inner | RACK END |
| |
577242T000 | KIA | CADENZA | 2015 | Inner | RACK END |
 |
577242G100 | KIA | RONDO | 2012 | Inner | RACK END |
| |
577242G010 | KIA | RONDO | 2012 | Inner | RACK END |
| |
577242G000 | KIA | RONDO | 2012 | Inner | RACK END |
 |
577242F000 | KIA | SPECTRA | 2009 | Inner | RACK END |
